IGF1R ELISA Kit

IGF1R Reactivity: Human AA 31-932 Colorimetric Sandwich ELISA 156-10000 pg/mL Cell Culture Supernatant, Plasma (EDTA), Plasma (heparin), Serum
Catalog No. ABIN2859294
  • Target See all IGF1R ELISA Kits
    IGF1R (Insulin-Like Growth Factor 1 Receptor (IGF1R))
    Binding Specificity
    AA 31-932
    Reactivity
    • 13
    • 6
    • 5
    • 1
    • 1
    Human
    Detection Method
    Colorimetric
    Method Type
    Sandwich ELISA
    Detection Range
    156-10000 pg/mL
    Minimum Detection Limit
    156 pg/mL
    Application
    ELISA
    Purpose
    Sandwich High Sensitivity ELISA kit for Quantitative Detection of Human IGF1R
    Brand
    PicoKine™
    Sample Type
    Cell Culture Supernatant, Serum, Plasma (heparin), Plasma (EDTA)
    Analytical Method
    Quantitative
    Specificity
    Expression system for standard: NSO
    Immunogen sequence: E31-N932
    Cross-Reactivity (Details)
    There is no detectable cross-reactivity with other relevant proteins.
    Sensitivity
    <10pg/mL
    Material not included
    Microplate reader in standard size. Automated plate washer. Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection. Clean tubes and Eppendorf tubes. Washing buffer (neutral PBS or TBS). Preparation of 0.01M TBS: Add 1.2g Tris, 8.5g Nacl
    Immunogen
    Expression system for standard: NSO
    Immunogen sequence: E31-N932
    Featured
    Discover our best selling IGF1R ELISA Kit
    Top Product
    Discover our top product IGF1R ELISA Kit
  • Application Notes
    Before using Kit, spin tubes and bring down all components to bottom of tube. Duplicate well assay was recommended for both standard and sample testing.
    Comment

    Sequence similarities: Belongs to the protein kinase superfamily. Tyr protein kinase family. Insulin receptor subfamily.

    Tissue Specificity: Found as a hybrid receptor with INSR in muscle, heart, kidney, adipose tissue, skeletal muscle, hepatoma, fibroblasts, spleen and placenta (at protein level). Expressed in a variety of tissues. Overexpressed in tumors, including melanomas, cancers of the colon, pancreas prostate and kidney. .

    Plate
    Pre-coated
    Protocol
    human IGF1R ELISA Kit was based on standard sandwich enzyme-linked immune-sorbent assay technology. A monoclonal antibody from mouse specific for IGF1R has been precoated onto 96-well plates. Standards(NSO, E31-N932) and test samples are added to the wells, a biotinylated detection polyclonal antibody from goat specific for IGF1R is added subsequently and then followed by washing with PBS or TBS buffer. Avidin-Biotin-Peroxidase Complex was added and unbound conjugates were washed away with PBS or TBS buffer. HRP substrate TMB was used to visualize HRP enzymatic reaction. TMB was catalyzed by HRP to produce a blue color product that changed into yellow after adding acidic stop solution. The density of yellow is proportional to the human IGF1R amount of sample captured in plate.
    Assay Procedure

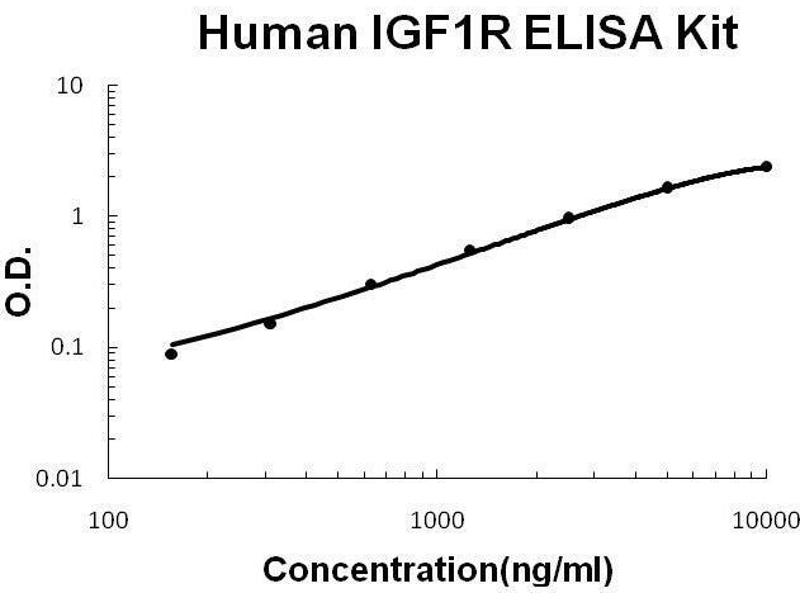

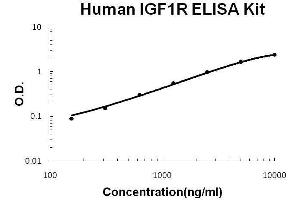

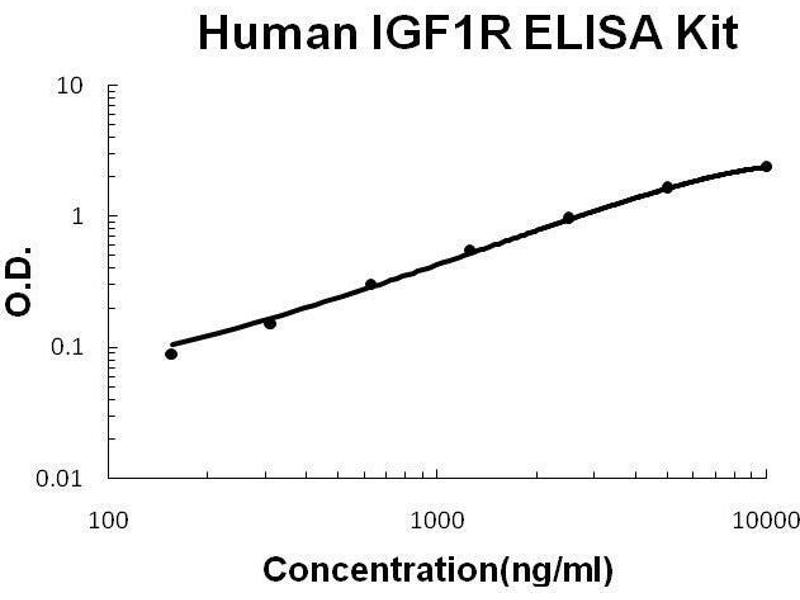

    Aliquot 0.1 mL per well of the 10000pg/mL, 5000pg/mL, 2500pg/mL, 1250pg/mL, 625pg/mL, 312pg/mL, 156pg/mL human IGF1R standard solutions into the precoated 96-well plate. Add 0.1 mL of the sample diluent buffer into the control well (Zero well). Add 0.1 mL of each properly diluted sample of human cell culture supernates, serum or plasma(heparin, EDTA) to each empty well. See "Sample Dilution Guideline" above for details. It is recommended that each human IGF1R standard solution and each sample be measured in duplicate.

    Assay Precision
    • Sample 1: n=16, Mean(ng/ml): 0.8, Standard deviation: 0.03, CV(%): 3.7
    • Sample 2: n=16, Mean(ng/ml): 2.5, Standard deviation: 0.105, CV(%): 4.2
    • Sample 3: n=16, Mean(ng/ml): 4.3, Standard deviation: 0.199, CV(%): 4.6,
    • Sample 1: n=24, Mean(ng/ml): 1.3, Standard deviation: 0.066, CV(%): 5.1
    • Sample 2: n=24, Mean(ng/ml): 2.8, Standard deviation: 0.151, CV(%): 5.4
    • Sample 3: n=24, Mean(ng/ml): 4.7, Standard deviation: 0.296, CV(%): 6.3
    Restrictions
    For Research Use only
  • Handling Advice
    Avoid multiple freeze-thaw cycles.
    Storage
    -20 °C,4 °C
    Storage Comment
    Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles
    Expiry Date
    12 months
  • Target See all IGF1R ELISA Kits
    IGF1R (Insulin-Like Growth Factor 1 Receptor (IGF1R))
    Alternative Name
    IGF1R (IGF1R Products)
    Synonyms
    CMT2N ELISA Kit, CD221 ELISA Kit, IGFIR ELISA Kit, IGFR ELISA Kit, JTK13 ELISA Kit, IGFIRC ELISA Kit, IGFR1 ELISA Kit, IGF-1R ELISA Kit, IGF1R ELISA Kit, DKFZp469I0618 ELISA Kit, igf-1r ELISA Kit, xIGF-1R ELISA Kit, xIGFR ELISA Kit, xigf1r ELISA Kit, A330103N21Rik ELISA Kit, D930020L01 ELISA Kit, hyft ELISA Kit, igf-ir ELISA Kit, IGF-IR ELISA Kit, IGF-IRb ELISA Kit, wu:fb03h06 ELISA Kit, IGF-IRa ELISA Kit, sb:eu1090 ELISA Kit, wu:fi20b10 ELISA Kit, alanyl-tRNA synthetase ELISA Kit, insulin like growth factor 1 receptor ELISA Kit, insulin-like growth factor 1 receptor ELISA Kit, insulin-like growth factor 1 ELISA Kit, insulin-like growth factor I receptor ELISA Kit, insulin like growth factor 1 receptor S homeolog ELISA Kit, insulin-like growth factor 1b receptor ELISA Kit, insulin-like growth factor 1a receptor ELISA Kit, AARS ELISA Kit, IGF1R ELISA Kit, Igf1r ELISA Kit, igf1r ELISA Kit, Igf1 ELISA Kit, LOC780503 ELISA Kit, LOC100136427 ELISA Kit, igf1r.S ELISA Kit, igf1rb ELISA Kit, igf1ra ELISA Kit
    Background

    Protein Function: Receptor tyrosine kinase which mediates actions of insulin-like growth factor 1 (IGF1). Binds IGF1 with high affinity and IGF2 and insulin (INS) with a lower affinity. The activated IGF1R is involved in cell growth and survival control. IGF1R is crucial for tumor transformation and survival of malignant cell. Ligand binding activates the receptor kinase, leading to receptor autophosphorylation, and tyrosines phosphorylation of multiple substrates, that function as signaling adapter proteins including, the insulin-receptor substrates (IRS1/2), Shc and 14-3-3 proteins. Phosphorylation of IRSs proteins lead to the activation of two main signaling pathways: the PI3K-AKT/PKB pathway and the Ras-MAPK pathway. The result of activating the MAPK pathway is increased cellular proliferation, whereas activating the PI3K pathway inhibits apoptosis and stimulates protein synthesis. Phosphorylated IRS1 can activate the 85 kDa regulatory subunit of PI3K (PIK3R1), leading to activation of several downstream substrates, including protein AKT/PKB. AKT phosphorylation, in turn, enhances protein synthesis through mTOR activation and triggers the antiapoptotic effects of IGFIR through phosphorylation and inactivation of BAD. In parallel to PI3K- driven signaling, recruitment of Grb2/SOS by phosphorylated IRS1 or Shc leads to recruitment of Ras and activation of the ras-MAPK pathway. In addition to these two main signaling pathways IGF1R signals also through the Janus kinase/signal transducer and activator of transcription pathway (JAK/STAT). Phosphorylation of JAK proteins can lead to phosphorylation/activation of signal transducers and activators of transcription (STAT) proteins. In particular activation of STAT3, may be essential for the transforming activity of IGF1R. The JAK/STAT pathway activates gene transcription and may be responsible for the transforming activity. JNK kinases can also be activated by the IGF1R. IGF1 exerts inhibiting activities on JNK activation via phosphorylation and inhibition of MAP3K5/ASK1, which is able to directly associate with the IGF1R.

    Background: IGF1R, also called IGFR or insulin-like growth factor 1 receptor, is a protein that found on the surface of human cells. This gene is mapped to 15q26.3. IGF1R belongs to the large class of tyrosine kinase receptors. This receptor mediates the effects of IGF-1, which is a polypeptide protein hormone similar in molecular structure to insulin. It plays an important role in growth and continues to have anabolic effects in adults - meaning that it can induce hypertrophy of skeletal muscle and other target tissues. IGF1R also plays a critical role in transformation events. It is highly overexpressed in most malignant tissues where it functions as an anti-apoptotic agent by enhancing cell survival.

    Synonyms: Insulin-like growth factor 1 receptor,2.7.10.1,Insulin-like growth factor I receptor,IGF-I receptor,CD221,Insulin-like growth factor 1 receptor alpha chain,Insulin-like growth factor 1 receptor beta chain,IGF1R,

    Full Gene Name: Insulin-like growth factor 1 receptor

    Cellular Localisation: Cell membrane, Single-pass type I membrane protein.
    Gene ID
    3480
    UniProt
    P08069
    Pathways
    RTK Signaling, Regulation of Hormone Metabolic Process, Regulation of Hormone Biosynthetic Process, Autophagy
